Wednesday, March 20, 2013

Low Cost Coil Economyzer Test for Tyco Kilovac EV200A1ANA

I am still in search of an economizer for my new Tyco Kilovac EV200A1ANA

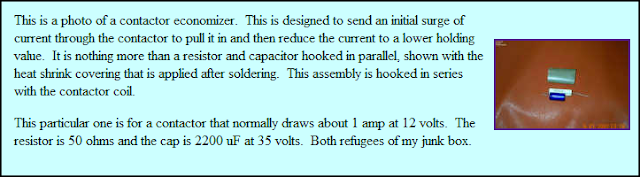

Last night, I tested different resistor values along with this 4700uF capacitor - I got for my Grid Tie Inverter repair previously - and found that the simple economizer described in this DIY Electric Car thread

seems to work . I could not find a resistor that works so I used this air dryer resistive wire again - alreday used on my mini bottom balancer - and cut a piece that was 10Ohms;

Closing the circuit bypassing the economizer, the relay closes and is using 3,5A

With the economizer, the contactor is closing and only 1A is going through the circuit - instead of 3,5A with no economizer -

1A at 12V = 12W

I will have to try with 20Ohms and see if what it does ... The idea is to leave the relay closed using minimum current, thus minimum power
